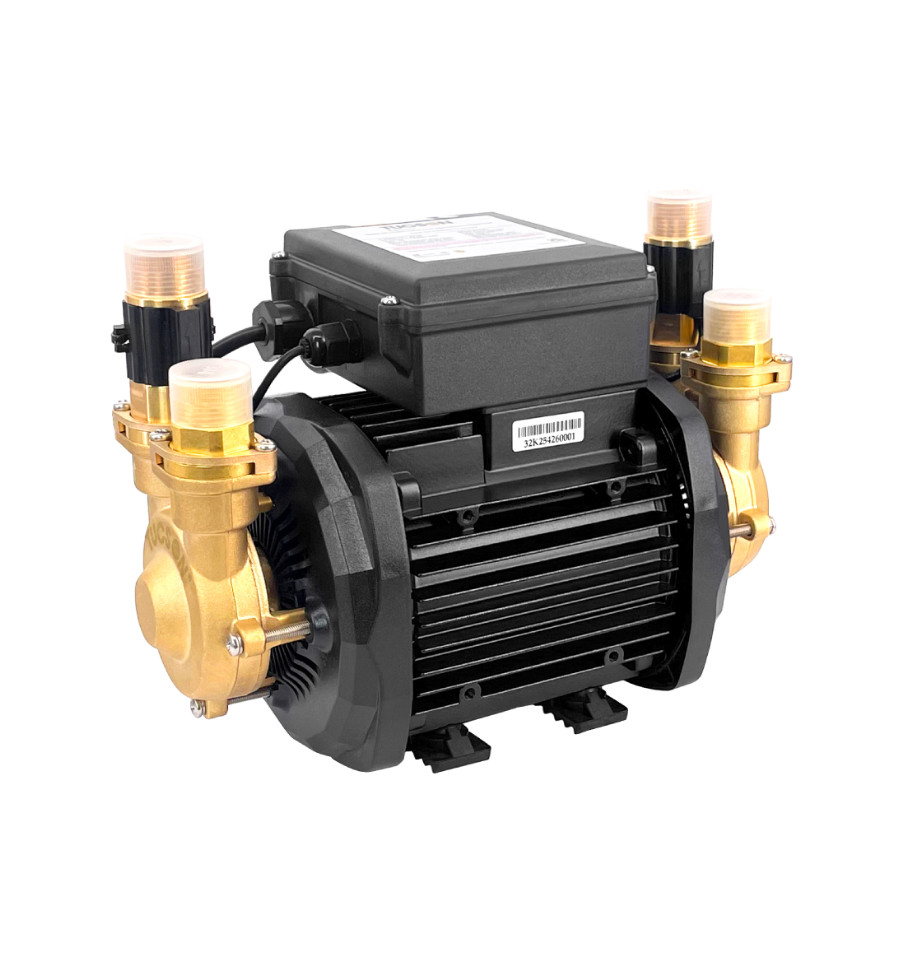

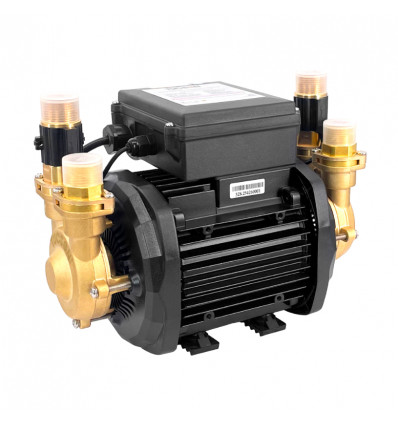

TUCSON 4 Bar Positive Head Twin Impeller Shower Pump

Product Description

Tucson Equinox 4 Bar Positive Head Twin Impeller Shower Pump 771922 – Imperial 3/4"

Ideal for gravity-fed systems, Equinox Positive Head Shower Pumps are designed for installation when the cold water tank is positioned above the showerhead, boosting both hot and cold water supplies for a stronger, more consistent shower experience.

At 4 bar this is the most powerful pump in the Equinox positive head range, and it offers a maximum head of 40 metres — the reason to choose it over the 3 bar is usually height or distance rather than raw power. Long pipe runs, a pump feeding multiple outlets, a body jet or rainfall shower system, or a bathroom several floors below the tank all eat into available pressure, and 4 bar keeps performance strong where a smaller pump would struggle. For a single standard shower in a typical two-storey house, the 3 bar is usually sufficient.

Key Features

• Genuine Tucson Equinox shower pump
• Product Code: 771922
• 4 bar operating pressure — strongest in the positive head range
• Maximum head of 40 metres
• Positive head — for tanks above the showerhead
• Twin impeller boosts hot and cold together
• Imperial 3/4" connections
• High-grade CW617N brass body
• Quiet operation under 66 dB at 5 metres
• Brass finish (upgraded from chrome-plated)
• Compression connections, not push-fit
• 4 × stainless steel flexible hoses included
• Aluminium lever isolating compression valves included
• Anti-vibration mat included
• WRAS approved and TÜV SÜD certified
• 3 year guarantee available on registration

Technical Specification

(The metric 22mm version of this pump is product code 771934.)

Benefits

• Strongest boost available in the Equinox positive head range
• Handles long pipe runs and multiple outlets
• Suits rainfall heads and body jet systems
• Balanced hot and cold boost from twin impellers
• Quiet enough for a hot press beside a bedroom
• Corrosion resistant brass body for long service life
• Everything needed to install is in the box
• Backed by a 3 year guarantee once registered
