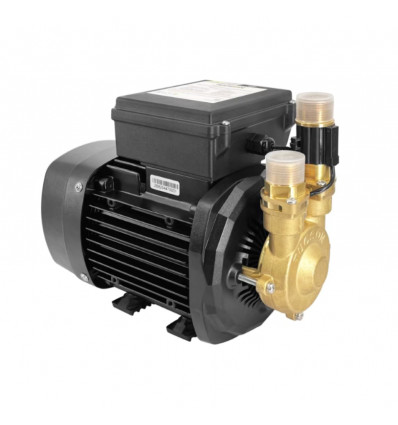

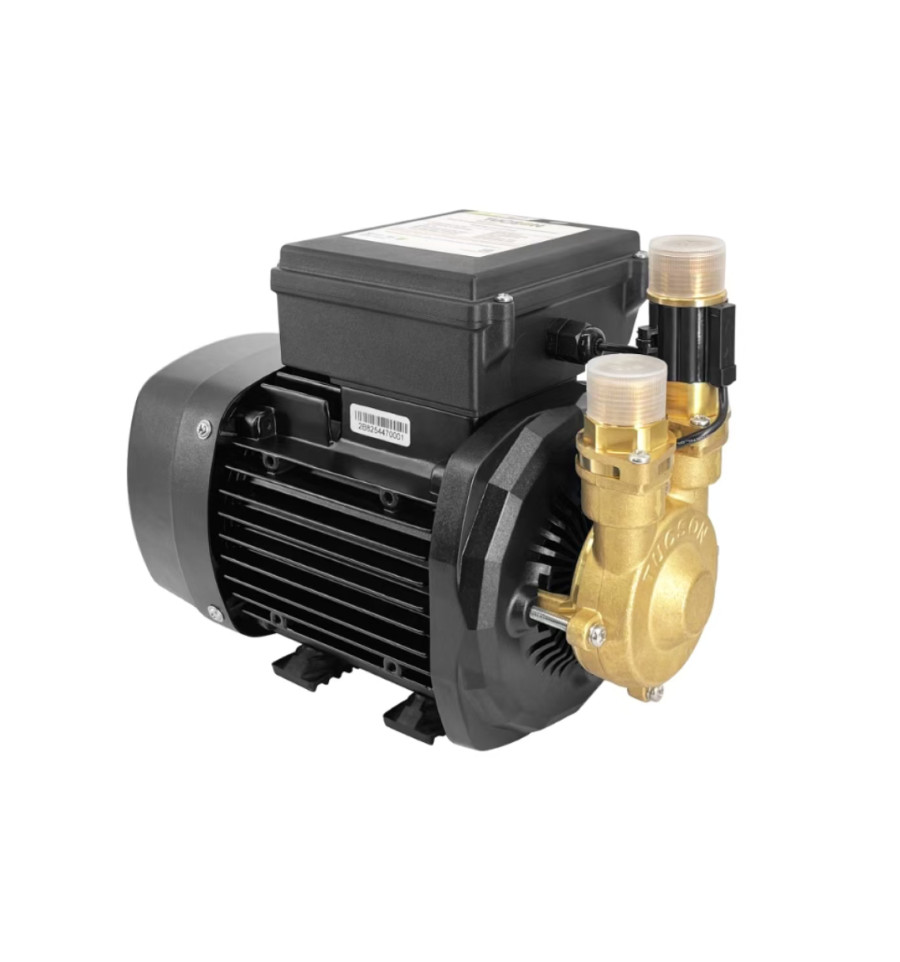

TUCSON 3 Bar Positive Head Single Impeller Shower Pump

Product Description

Tucson Equinox 3 Bar Positive Head Single Impeller Shower Pump 771967 – Imperial 3/4"

Built for straightforward installations, Equinox Positive Head Single Impeller Shower Pumps provide reliable pressure boosting for either the hot or cold water supply in gravity-fed systems, and are designed for use where the cold water tank is positioned above the showerhead.

The single impeller is the point of difference. Where a twin impeller pump boosts hot and cold separately, this unit boosts one supply — which is exactly what's needed on a single feed, a blended outlet from a mixer valve, or where only the hot side needs help. It's a simpler, more compact and more economical solution than a twin pump when a full two-line boost isn't required.

Key Features

• Genuine Tucson Equinox shower pump
• Product Code: 771967
• 3 bar operating pressure
• Maximum head of 32 metres
• Single impeller — boosts hot or cold supply
• Positive head — for tanks above the showerhead
• Imperial 3/4" connections
• High-grade CW617N brass body
• Quiet operation under 66 dB at 5 metres
• 2 × stainless steel flexible hoses included
• Aluminium lever isolating compression valves included
• Anti-vibration mat included
• WRAS approved
• 3 year warranty (registration required)

Technical Specification

(The metric 22mm version of this pump is product code 771969. For boosting hot and cold together, the twin impeller version is 771957.)

Benefits

• Cost-effective where only one supply needs boosting
• Ideal for blended outlets from a mixer valve
• Compact and simple to install
• Strong 3 bar boost with 32 metre maximum head
• Quiet enough for a hot press beside a bedroom
• Corrosion resistant brass body for long service life
• Everything needed to install is in the box
• Backed by a 3 year warranty once registered
