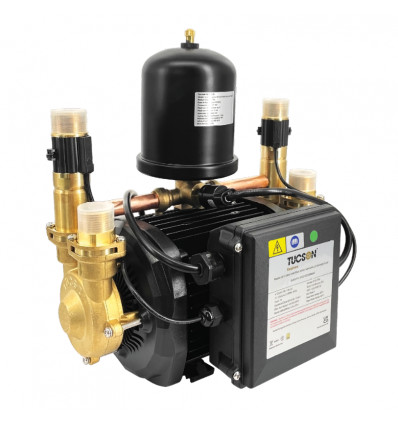

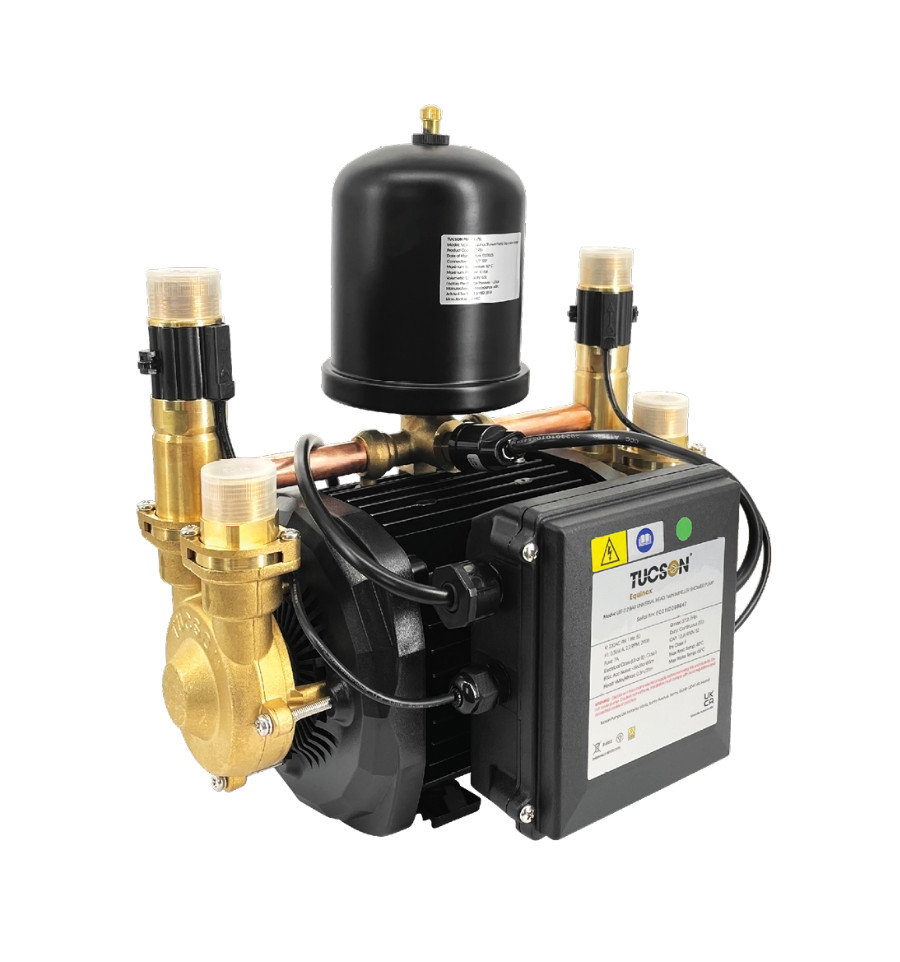

TUCSON 4 Bar Universal Head Twin Impeller Shower Pump

Product Description

Tucson Equinox 4 Bar Universal Head Twin Impeller Shower Pump 771923 – Imperial 3/4"

Perfect for a variety of setups, Equinox Universal Head Shower Pumps are designed to work in both positive and negative head systems, offering maximum flexibility for installation. Whether the cold water tank is above or below the showerhead, the pump delivers powerful and balanced pressure to both hot and cold supplies, ensuring a consistently strong and satisfying shower experience.

That flexibility is the whole point of a universal head pump. A positive head unit needs the tank sitting comfortably above the outlet to start; a universal head pump activates regardless, so it handles attic conversions, top floor en-suites level with the tank, and any installation where you can't be certain there's enough natural fall. If you're specifying for a job before seeing the pipework, or replacing a pump in a house where the original installer's arrangement is unclear, universal head removes the risk of buying the wrong type.

Key Features

• Genuine Tucson Equinox shower pump
• Product Code: 771923
• 4 bar operating pressure
• Universal head — works with positive and negative head systems
• Maximum head of 40 metres
• Twin impeller boosts hot and cold together
• Imperial 3/4" connections
• High-grade CW617N brass body
• Quiet operation under 66 dB at 5 metres
• Brass finish (upgraded from chrome-plated)
• Compression connections, not push-fit
• 4 × stainless steel flexible hoses included
• Aluminium lever isolating compression valves included
• Anti-vibration mat included
• WRAS approved and TÜV SÜD certified
• 3 year guarantee available on registration

Technical Specification

(The metric 22mm version of this pump is product code 771935. The positive head only version is 771922.)

Benefits

• Works whether the tank is above or below the showerhead
• Removes the risk of specifying the wrong head type
• Ideal for attic conversions and top floor bathrooms
• Balanced hot and cold boost from twin impellers
• Strong 4 bar performance with 40 metre maximum head
• Quiet enough for a hot press beside a bedroom
• Corrosion resistant brass body for long service life
• Everything needed to install is in the box
