Heatmiser UH8-RF v2 - 8 Zone Wireless Wiring Centre UH8-RF

Product Description

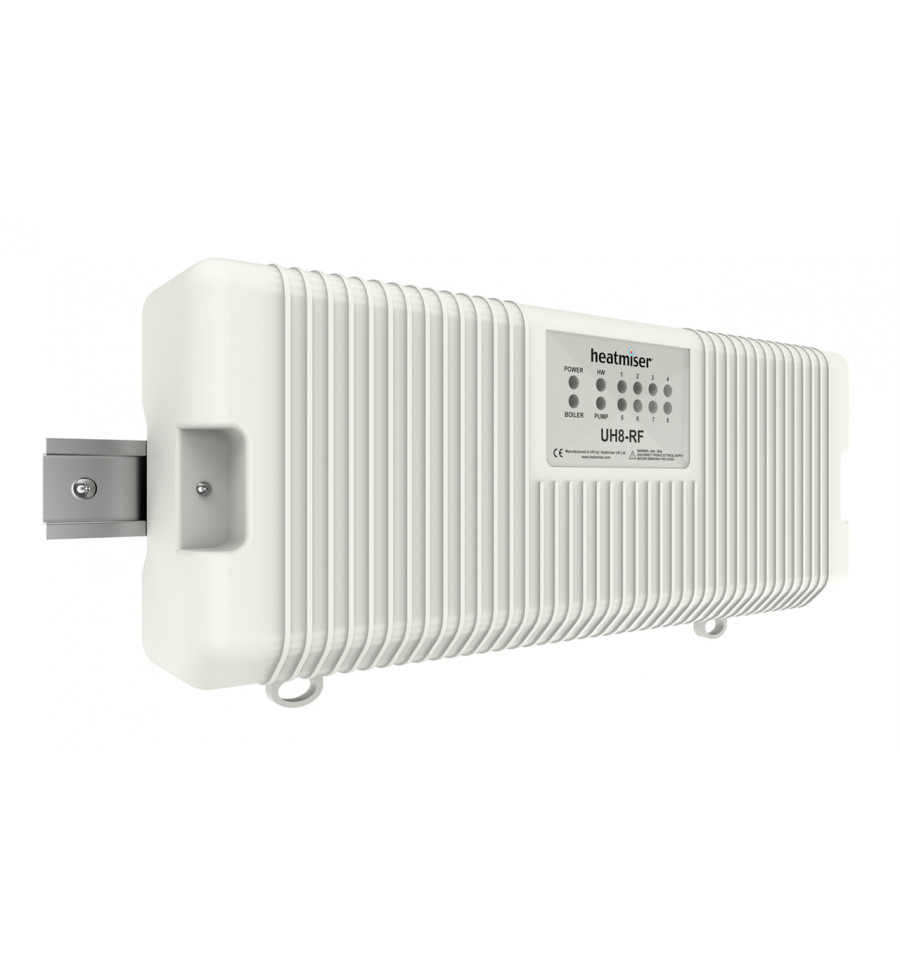

Heatmiser UH8-RF v2 – 8 Zone Wireless Wiring Centre

The Heatmiser UH8-RF v2 is an 8 zone wireless wiring centre designed to work with the Slimline-RF v3 and neoAir v3 thermostats. It provides central switching and is therefore ideally situated next to the underfloor heating manifold. Eight zones can be controlled, as well as providing an output for a hot water cylinder.

On demand from any zone, a 230v output is provided to switch the relevant zone actuators, underfloor heating pump and valve. A volt free connection is supplied for the boiler, making it compatible with almost all types of boilers. The volt free output has changeover contacts, giving both a heat-on and a heat-off signal. Up to 6 actuators can be connected to each zone.

Key Features

• Genuine Heatmiser UH8-RF v2
• 8 heating zones plus 1 hot water output
• Wireless — works with Heatmiser RF and neoAir v3 thermostats
• 230v output for zone actuators, UFH pump and valve
• Volt free boiler output with changeover contacts
• Heat-on and heat-off boiler signalling
• Up to 6 actuators per zone
• RF link to RF Switch v2 for a fully wireless install
• Zones configurable for underfloor heating or radiators
• Neon status indicators for each output
• 12 dip switches for commissioning and testing
• Dew point sensing support in cooling mode
• Wall or DIN rail mounting
• Cable entry without drilling cutouts
• External aerial available for restricted signal locations
• 2 year return to base warranty

Technical Specification

Benefits

• One central unit controls a whole UFH system
• Sits beside the manifold where the pipework already is
• No thermostat cabling to run to individual rooms
• Volt free boiler output suits almost any heat source
• Fully wireless boiler link via the RF Switch v2
• Neat, professional install with DIN rail mounting
• Neon indicators make fault finding quick
• Dip switch testing speeds up commissioning
