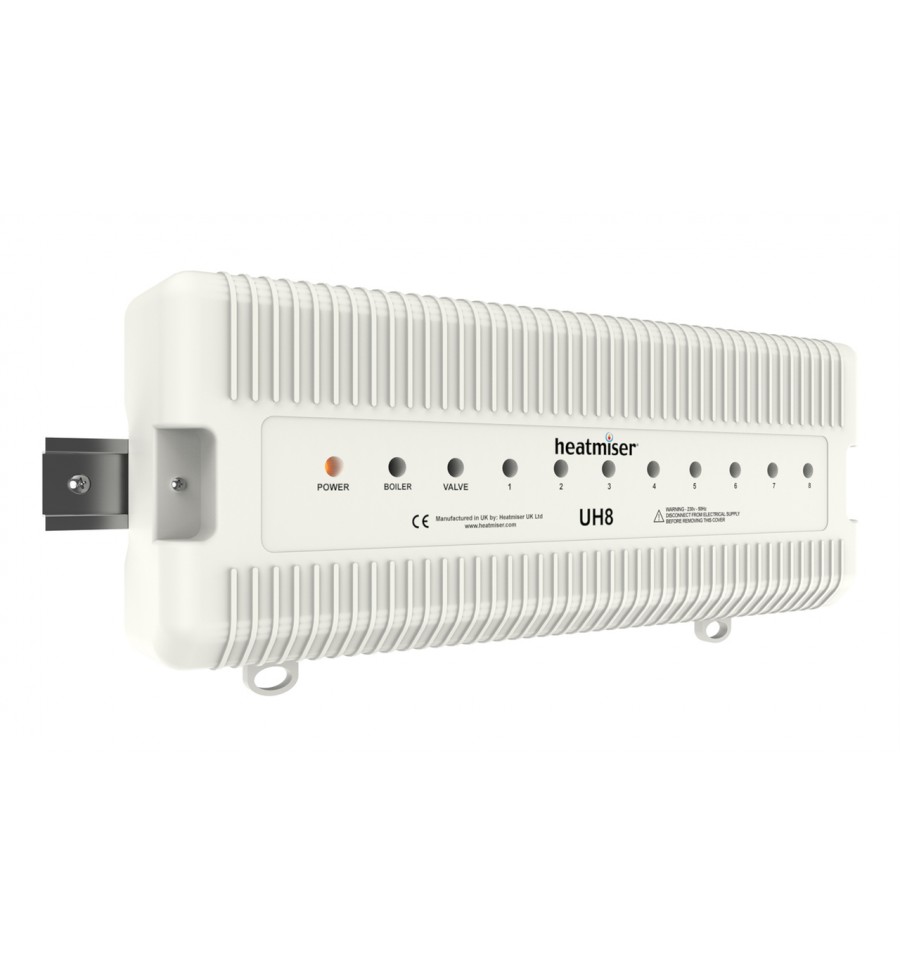

Heatmiser 8 Zone 230v Underfloor Heating Wiring Centre




8 Zone 230v Underfloor Heating Wiring Centre

More details


tax incl.
  • Heatmiser 8 Zone Wiring Centre
  • 8 Zones
  • 230V Actuator Outputs
  • Network connection to Touchpad, Netmonitor, TR2, PCLink
  • Up To 4 Actuators Per Zone
  • Up to 8 zones can be controlled from the UH8. On board the UH8 are two heating time channels, each zone allows you to specify which time channel it should follow. 2 additional time channel connections are provided for hot water control or other auxiliary devices. On demand from any zone, a 230v output is provided to switch the relevant zone actuator, underfloor heating pump and valve. A volt free connection is supplied for the boiler, making it compatible with almost all types of boilers.

    A simple slide switch makes zone 8 suitable for controlling a radiator zone. When used for controlling radiators, zone 8 does not enable the underfloor heating pump, valve and boiler.Up to 4 actuators can be connected to each zone.
