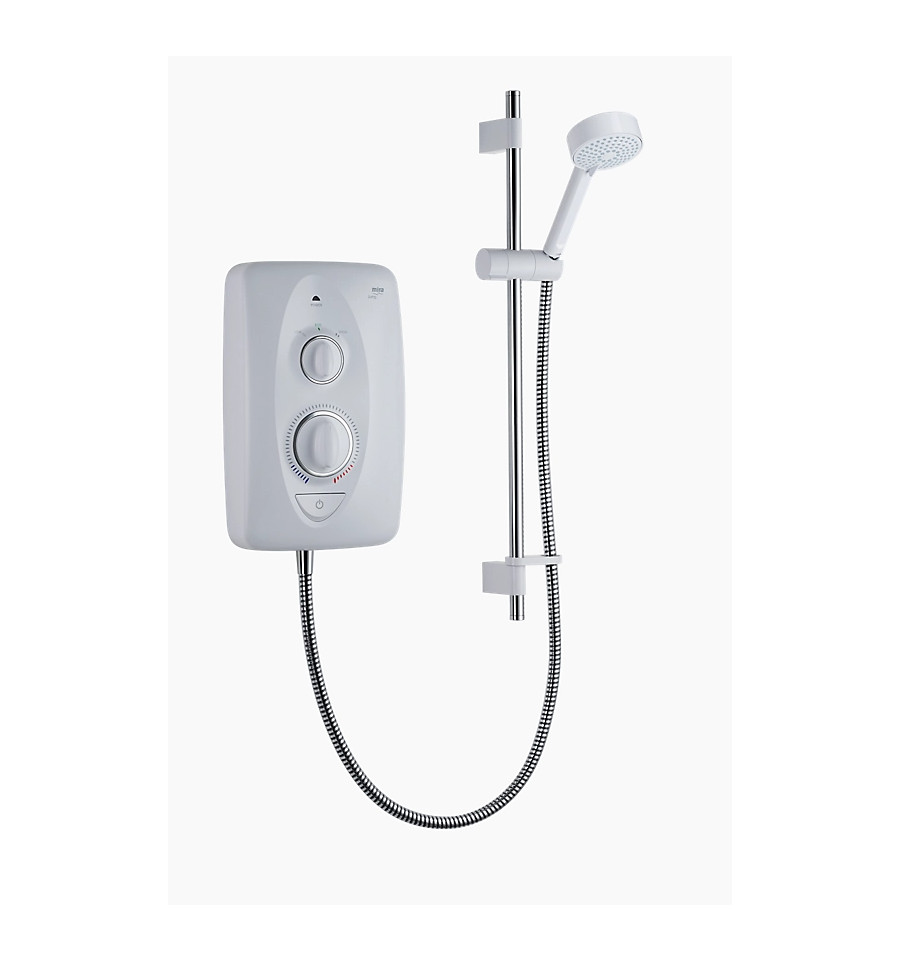

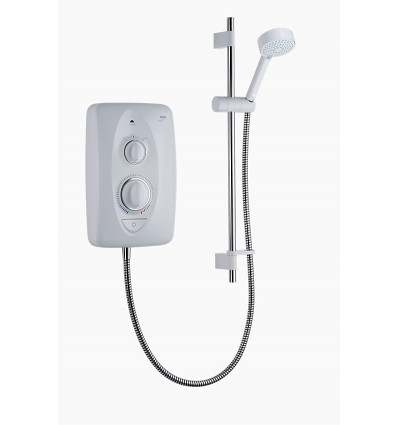

Mira Jump Multi-Fit 9.5kW Electric Shower – White & Chrome (1.1788.011)

Mira Jump Multi-Fit 9.5kW Electric Shower – White & Chrome

Mira Jump Multi-Fit is the ultimate in flexible fitting — designed to replace any existing electric shower, with no compromise in style or showering performance.

That's the entire point of this model, and it solves the problem every shower replacement runs into. Your old unit's cable comes in from one side and the water from the other, or both from below, and the new shower expects them somewhere else. The Jump Multi-Fit accepts water and cable entry from the left or right, rising, falling or rear — so it fits whatever arrangement is already on the wall. Dual terminal blocks and an integrated pipe channel give more space to work under the cover, which any electrician replacing a shower will appreciate.

⚠️ Installation by a qualified electrician. Requires a 40 amp supply, 230V ± 10%, with a minimum maintained pressure of 0.7 bar (7 metre head).

Key Features

• Genuine Mira electric shower
• Product Code: 1.1788.011
• 9.5kW at 240V (8.7kW at 230V)
• White and chrome finish
• Replaces any existing electric shower
• Retrofits Triton, Aqualisa and other brands
• Water and cable entry left or right — rising, falling or rear
• Dual terminal blocks for easier connection
• Integrated pipe channel, more space under the cover
• Adjustable slide bar covers old screw holes
• Mira Clearscale™ cuts limescale by up to 50%
• Pressure stabilised temperature control
• Push-button on/off
• Separate power and temperature controls
• Eco setting saves water and energy
• 4-spray 9cm showerhead with rub-clean nozzles
• Easy filter access for servicing
• BEAB and WRAS approved
• 2 year guarantee (domestic)

Technical Specification

Benefits

• Fits where your old shower's pipes and cable already are
• No drilling fresh holes or patching old ones
• Works as a replacement for other brands, not just Mira
• Lasts longer in hard water thanks to Clearscale
• Steady temperature when taps run elsewhere
• One-button operation once set to your preference
• Eco setting reduces water and electricity use
• Serviceable — filter access without a strip-down
