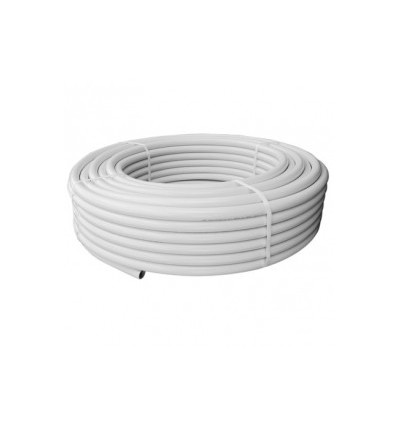

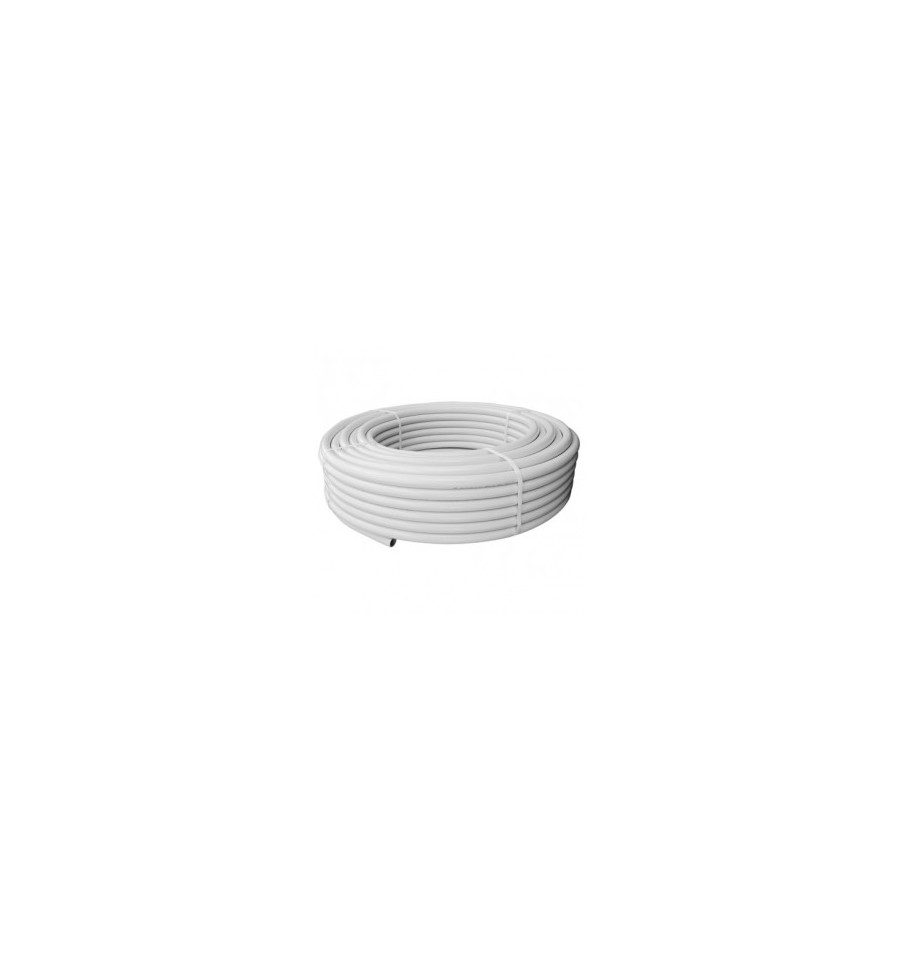

Multilayer Pipe 16mm X 500m x 16 rolls

M81655

New

Multilayer Pipe 16mm X 500m x 16 rolls

8,000 meters

More details

€3,995.00

tax incl.

€4,195.00 tax incl.

-€200.00

  • Multilayer Pipe 16mm Diameter X 500m Length Coil
  • Multylayer Plain Pipe
  • Multilayer (PE-xB/Al/PE-xB) Pipe
  • UNI EN ISO 21003 & DIN 4726 compliant
  • Consists Of A Double Inner & Outer Layer Of Crosslinked Polyethylene PE-xB (Silane Method - B) Bound By A Special Adhesive To A Longitudinally Welded (TIG Butt Welded) intermediate Aluminium Alloy Layer
  • This Structure Is Highly Shapeable, Provides A Complete Barrier To Oxygen, Ensures Total Hygiene & High Corrosion Resistance Since Fluids Come In Contact Only With The Inner PE-xB Layer
  • Maximum Operating Temperature: 95°C
  • Maximum Peak Temperature: 110°C
  • Max Pressure @ 95°C: 10 bar
  • Thermal Conductivity @ 20°C: 0.43 W/mK
  • Oxygen Permeability: 0 mg/l
  • Roughness: 7 μm
  • WRAS
  • 16 rolls
Width 16mm
Length 500m

Pipe
