SystemLink Spirozone 7
SPD7-28-28-28
New

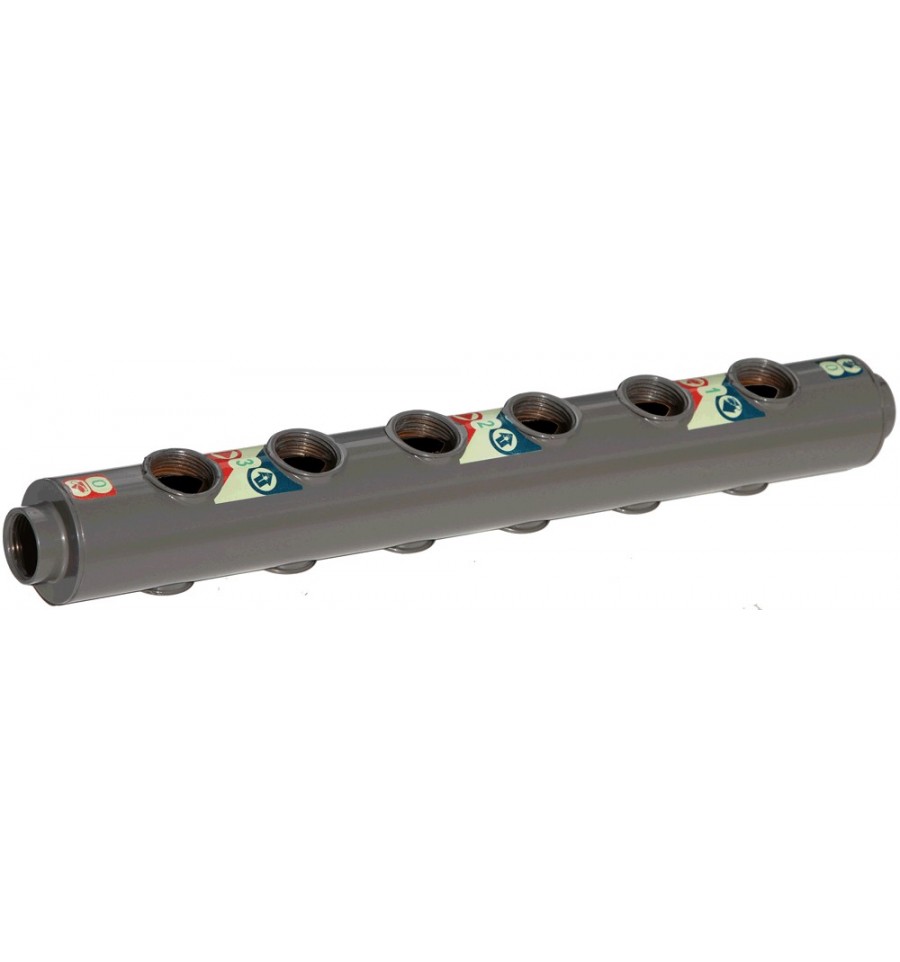

SystemLink Spirozone 7
- SystemLink Spirozone 7
- Unique Double Helix Interior; Compact Design & Low Resistance To Flow
- Controlled System By-Pass, Internal Valves Separate Hot Supply & Cooler Return Flows, Minimising Internal Heat Leakage & Increasing Efficiency
- Fully Insulated
- Simple To Install
- Can Be Mounted In Any Orientation For Versatile Installation With Connections On Top & Bottom
- No Need For Motorised Valves
- Compatible With Oil, Gas, Solid Fuel, Heat Pumps & Solar
- Distance Between Flow/ Return Connections; 70mm
- Source/Zone Connection Size & Type; 1" & 3/4" BSP Female Parallel Thread
- Maximum Working Pressure; 4Bar
- Maximum Heat Capacity Per Connection; 46kW Ends, 35kW Top And Bottom
- Maximum Overall Heat Capacity; 46kW
| Length | 513mm |
| Diameter | 60.5mm (76.5mm Inc. Insulation) |
