SystemLink Spirozone 6

SPD6-28-28-28

New

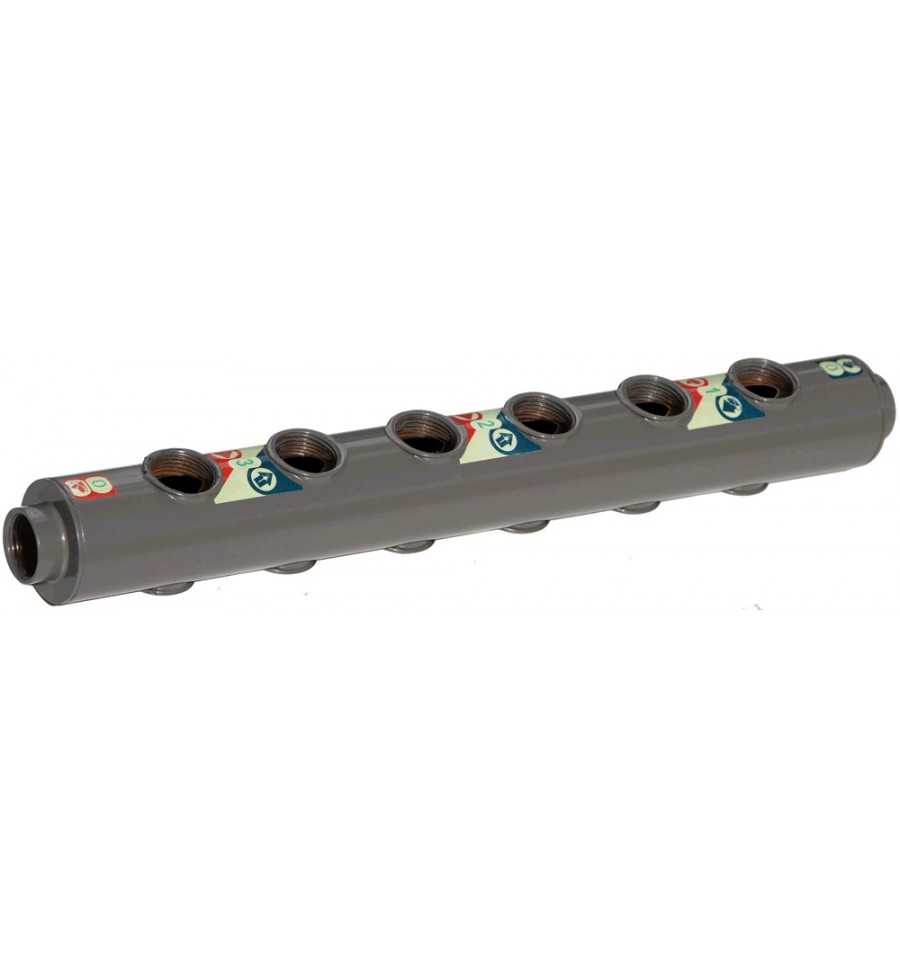

SystemLink Spirozone 6

More details

€408.38

tax incl.
  • SystemLink Spirozone 6
  • Unique Double Helix Interior; Compact Design & Low Resistance To Flow
  • Controlled System By-Pass, Internal Valves Separate Hot Supply & Cooler Return Flows, Minimising Internal Heat Leakage & Increasing Efficiency
  • Fully Insulated
  • Simple To Install
  • Can Be Mounted In Any Orientation For Versatile Installation With Connections On Top & Bottom
  • No Need For Motorised Valves
  • Compatible With Oil, Gas, Solid Fuel, Heat Pumps & Solar
  • Distance Between Flow/ Return Connections; 70mm
  • Source/Zone Connection Size & Type; 1" & 3/4" BSP Female Parallel Thread
  • Maximum Working Pressure; 4Bar
  • Maximum Heat Capacity Per Connection; 46kW Ends, 35kW Top & Bottom
  • Maximum Overall Heat Capacity; 46kW
Length 513mm
Diameter 60.5mm (76.5mm Inc. Insulation)
