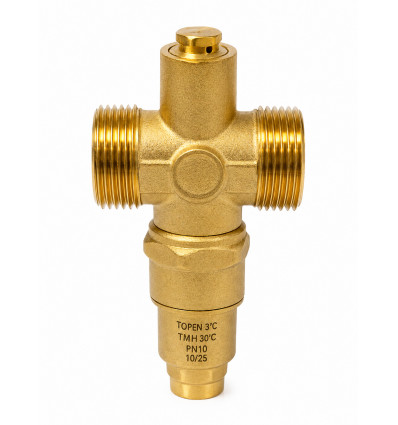

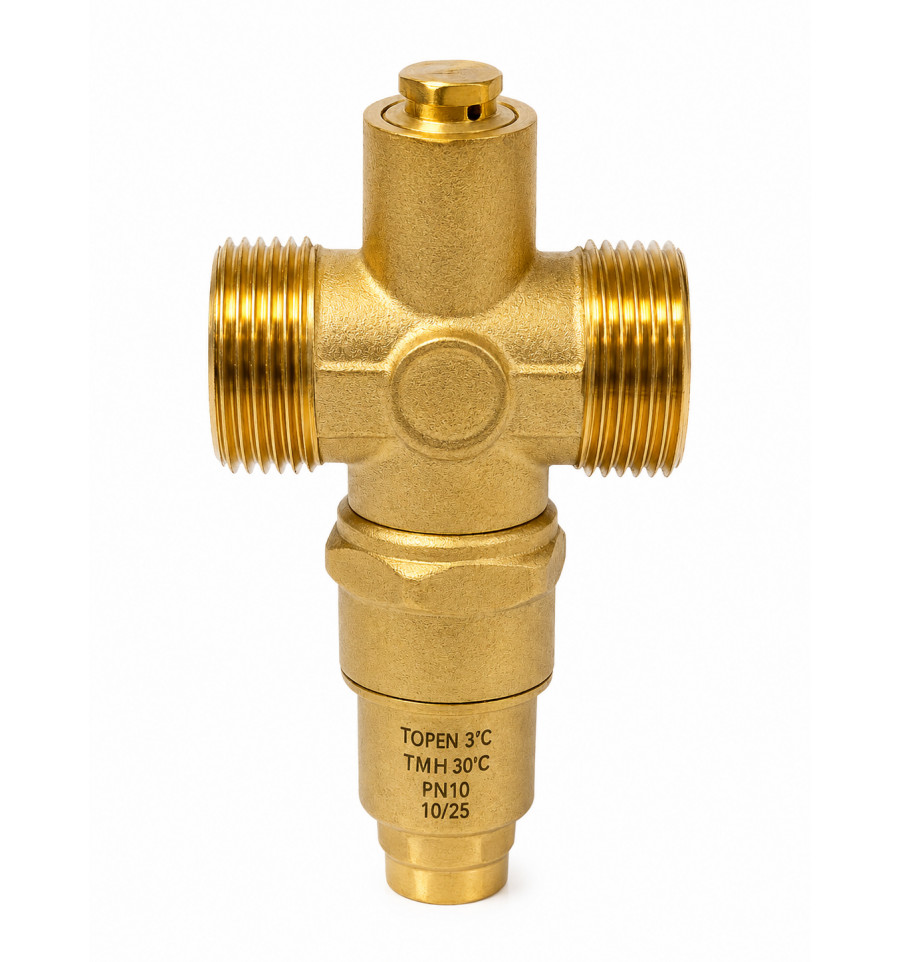

Antifreeze Valve 1" – Self-Acting Frost Protection Valve

Antifreeze Valve 1" – Self-Acting Frost Protection (X0001)

A burst pipe is one of the most expensive failures in any heating installation, and it almost always happens on the exposed sections — outdoor plant, unheated garages, heat pump connections and pipework in a loft. This valve is the simplest and cheapest defence against it.

The operation is entirely mechanical. When the temperature of the water in the pipe drops to 3°C, the cartridge of the antifreeze valve opens and drains off the water. The cartridge closes again when the water temperature returns to 4°C. By discharging the water before it can turn to ice, the valve removes the expansion that splits pipework and cracks fittings.

Key Features

• Product Code: X0001
• 1" connection
• Opens automatically at 3°C
• Closes again at 4°C
• Opening accuracy ±1°C
• Fully self-acting — no power supply required
• Continues protecting during a power cut
• CW617N brass body
• Stainless steel 304 spring
• EPDM seals
• Maximum working pressure 10 bar (PN10)
• Ambient operating range -30°C to 60°C
• Protects against burst pipes and frost damage

Technical Specification

Benefits

• Prevents costly burst pipes in freezing weather
• Works automatically with no user intervention
• No electricity, controller or wiring needed
• Keeps working during a power cut
• Ideal for heat pumps and outdoor plant
• Brass body for long service life
• Simple tee connection into existing pipework
• Low-cost insurance against major frost damage
