Multilayer Insulated Pipe 20mm X 50m (BLUE)

M720B

New

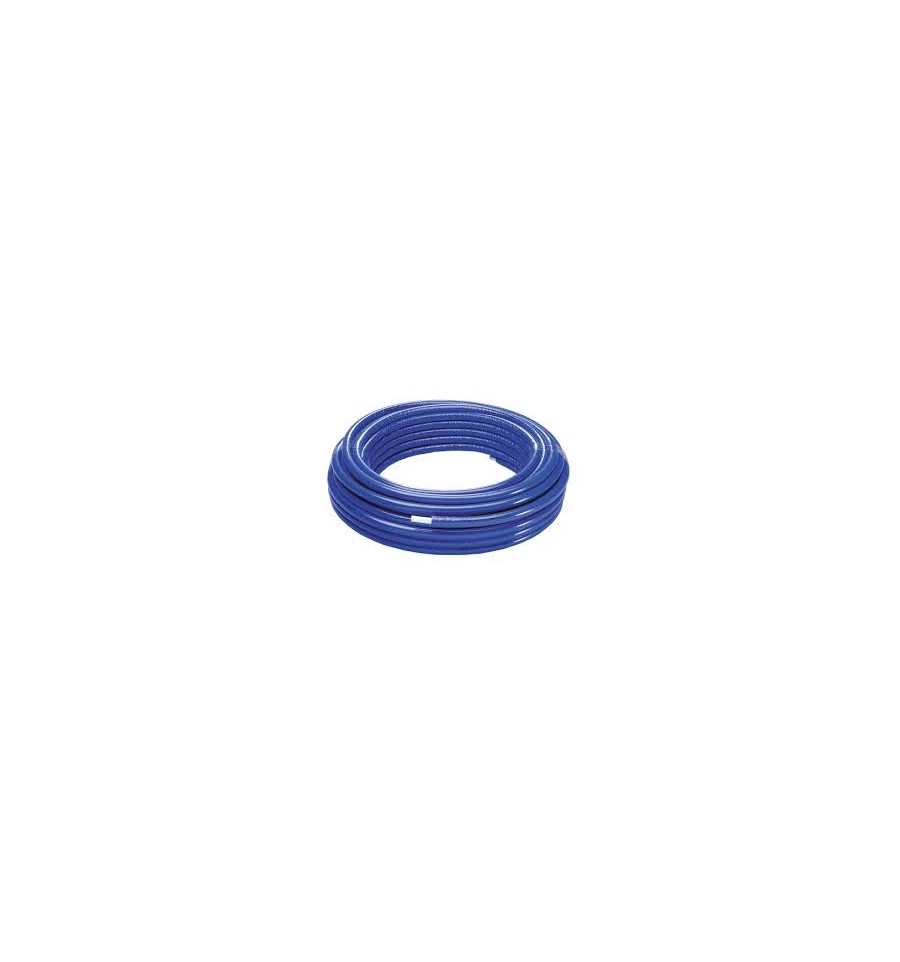

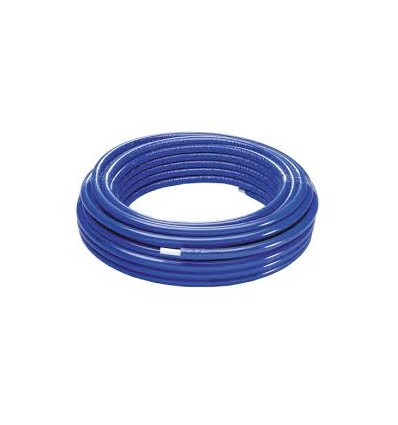

APE Multilayer Insulated Pipe 20mm Diameter X 50m Length Coil

Multilayer Insulated Pipe 20mm X 50m (BLUE)

More details

€87.64

tax incl.
Add to wishlist
  • Multilayer Insulated Pipe 20mm Diameter X 50m Length Coil
  • Multilayer Coated Pipe For Heating & Domestic Use
  • An Insulated Multilayer Pipe For Heating & Cooling Applications
  • Consists Of A Double Inner & Outer Layer Of Crosslinked Polyethylene PE-xB (Silane Method - B) Bound By A Special Adhesive To A Longitudinally Welded (TIG Butt Welded) Intermediate Aluminium Alloy Layer & A Closed Cell Polyethylene Foam Insulating Sheath (PE- LD) Protected By Scratch Resistant PE-LD Layer
  • Highly Shapeable, Provides A Complete Barrier To Oxygen, Ensures Total Hygiene & High Corrosion Resistance As Fluids Only Come In Contact With The Inner PE-xB Layer
  • Maximum Operating Temperature: 95°C
  • Maximum Peak Temperature: 110°C
  • Max pressure @ 95°C: 10 bar
  • Oxygen permeability: 0 mg/l
  • Roughness: 7 μm
  • UNI EN ISO 21003 & DIN 4726 compliant
  • Sheath thermal conductivity at 40°C: 0.04 W/mK
  • The Thickness Of The Pipe Insulating Layers Are Compliant With D.P.R. no. 412 1993
  • The Insulated Pipe Is Approved According To Ministerial Decrees June 26, 1984 & September 3, 2001
  • Reaction To Fire Class 1-1
Width 20mm
Length 50m
