3 Coil 200L Joule Stainless Steel Cylinder

Product Description

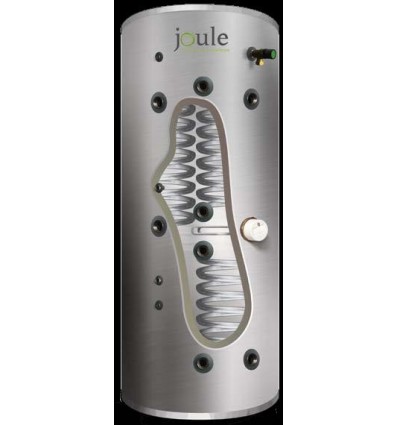

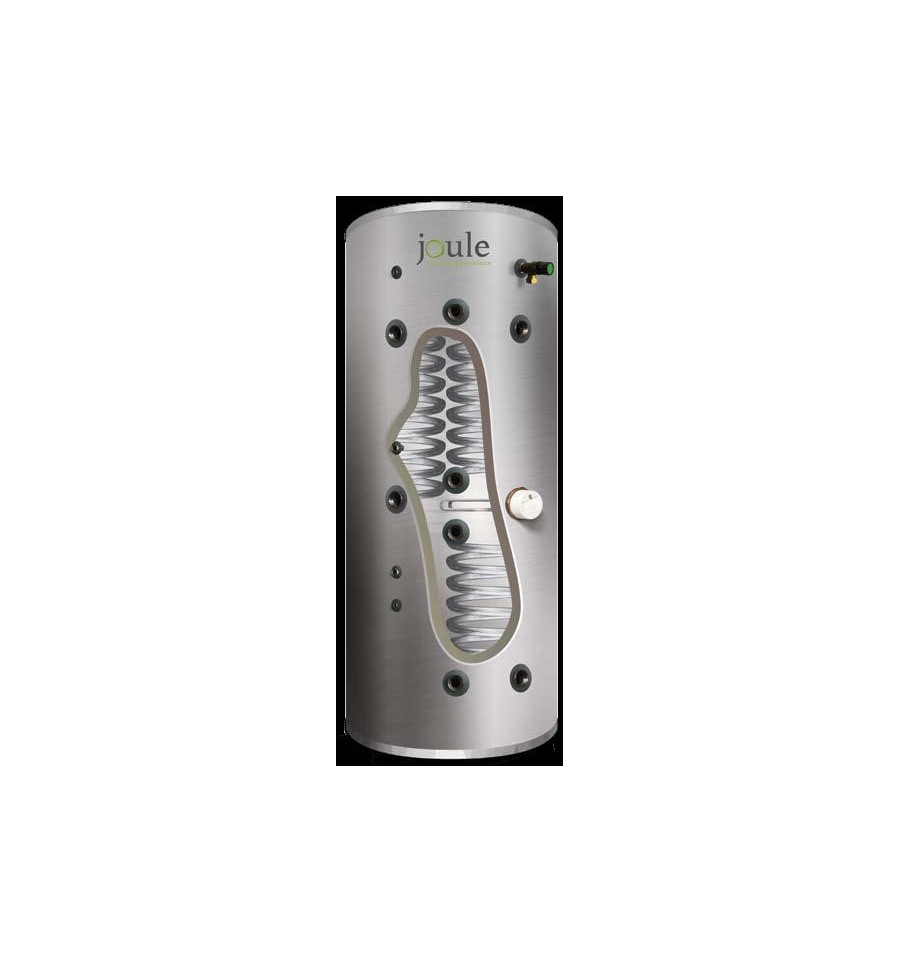

Joule Cyclone Triple Coil Cylinder TCIMV3-0200NFC – 200L Unvented Stainless Steel Cylinder

The Joule Cyclone TCIMV3-0200NFC is a 200-litre triple coil unvented hot water cylinder, designed specifically with multi-fuel applications in mind. Manufactured from high-grade duplex stainless steel with 316L stainless fittings and coils, it delivers excellent durability, corrosion resistance and fast heat recovery from every heat source connected to it.

Three separate coils allow one cylinder to serve an entire multi-fuel home. A purpose-designed solar coil allows maximum heat transfer of solar energy into the stored water, while a 28mm (1") gravity coil facilitates the use of gravity-fed solid fuel systems such as a stove or back boiler. A third 3/4" coil connects a conventional gas or oil boiler. Combined with the use of excess heat from a solid fuel system during winter, this cylinder lets you optimise heat use across both summer and winter, while delivering mains pressure hot water for powerful showers and fast-filling baths.

The Cyclone range uses smooth tube coil construction for durability and performance, with compression connections fitted as standard, a bevelled stat pocket for better thermostat fitting, pre-plugged secondary tapping for ease of installation and clearly labelled connections throughout. A factory-fitted immersion heater is included as standard. The metallic grey wipe-clean rigid casing gives a premium finish with no cheap plastic on the outer case.

Key Features

• Genuine Joule Cyclone cylinder
• Product Code: TCIMV3-0200NFC
• 200 Litre capacity
• Unvented mains pressure hot water cylinder
• Triple coil design for multi-fuel homes
• 2 × 3/4" coils for solar and gas or oil boiler
• 1 × 28mm (1") gravity coil for solid fuel systems
• High-grade duplex stainless steel construction
• 316L grade stainless steel fittings and coils
• Smooth tube coils for high recovery rates
• Factory-fitted immersion heater
• Pre-plugged secondary return tapping
• Compression connections fitted as standard
• Metallic grey wipe-clean rigid casing
• 25-year cylinder guarantee, 2 years on components
