3 Coil 250L Joule Stainless Steel Cylinder

Product Description

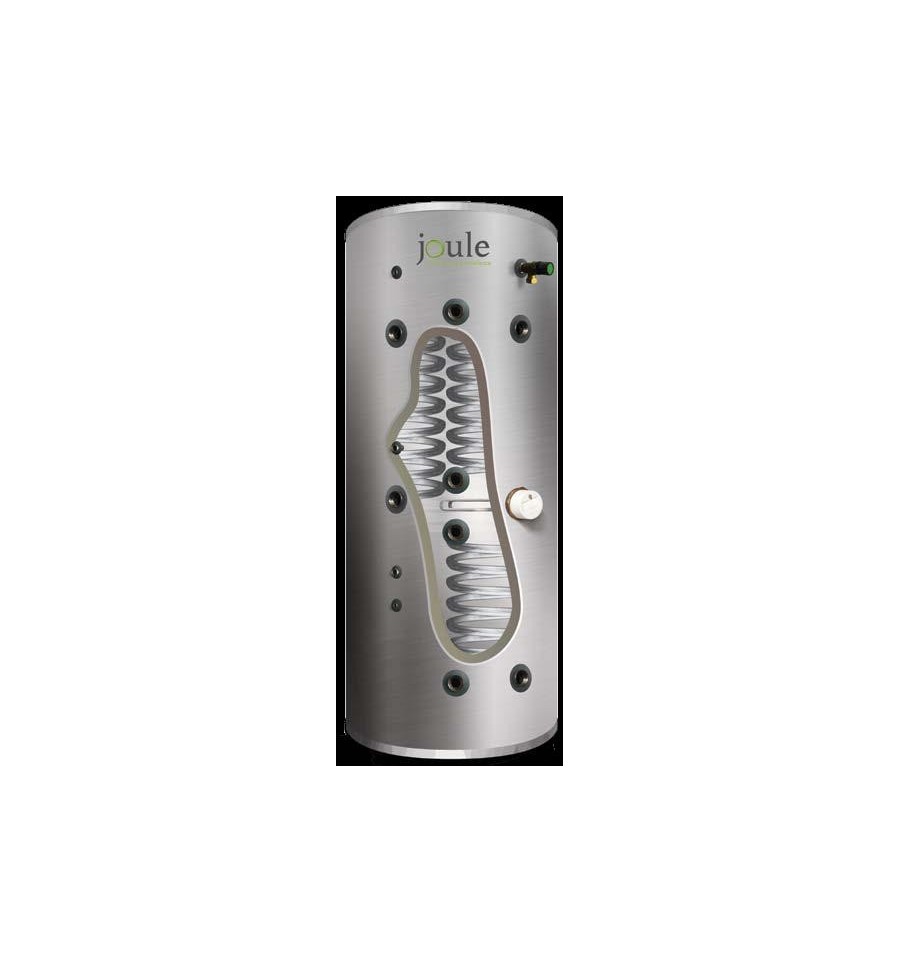

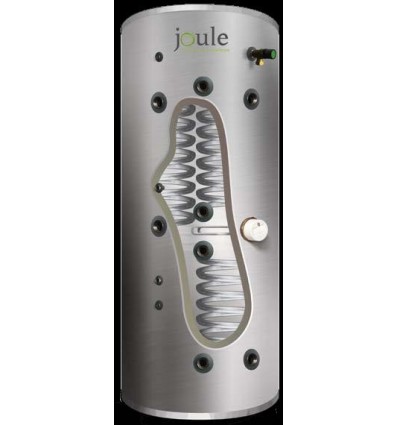

Joule Cyclone Triple Coil Cylinder TCIMV3-0250NFC – 250L Unvented Stainless Steel Cylinder

The Joule Cyclone TCIMV3-0250NFC is a 250-litre triple coil unvented hot water cylinder, offering extra stored volume for homes with several bathrooms or heavier daily hot water use. The Cyclone triple coil range is designed specifically with multi-fuel applications in mind, and is built from high-grade duplex stainless steel with 316L stainless fittings and coils for long-term corrosion resistance and fast recovery.

Its three independent coils allow solar, boiler and solid fuel to feed a single cylinder. A purpose-designed solar coil allows maximum heat transfer of solar energy into the stored water, while a 28mm (1") gravity coil facilitates the use of gravity-fed solid fuel systems such as a stove or back boiler, and a third 3/4" coil takes a conventional gas or oil boiler. Combined with the use of excess heat from a solid fuel system during winter, this cylinder lets you optimise heat use across both summer and winter, while delivering mains pressure hot water for powerful showers and fast-filling baths.

Smooth tube coil construction gives durability and performance, with compression connections fitted as standard, a bevelled stat pocket for better thermostat fitting, pre-plugged secondary tapping for ease of installation and clearly labelled connections throughout. A factory-fitted immersion heater is supplied as standard. The metallic grey wipe-clean rigid case gives a premium appearance with no cheap plastic on the outer casing.

Key Features

• Genuine Joule Cyclone cylinder
• Product Code: TCIMV3-0250NFC
• 250 Litre capacity
• Unvented mains pressure hot water cylinder
• Triple coil design for multi-fuel homes
• 2 × 3/4" coils for solar and gas or oil boiler
• 1 × 28mm (1") gravity coil for solid fuel systems
• High-grade duplex stainless steel construction
• 316L grade stainless steel fittings and coils
• Smooth tube coils for high recovery rates
• Factory-fitted immersion heater
• Pre-plugged secondary return tapping
• Compression connections fitted as standard
• Metallic grey wipe-clean rigid casing
• 25-year cylinder guarantee, 2 years on components

Technical Specification
