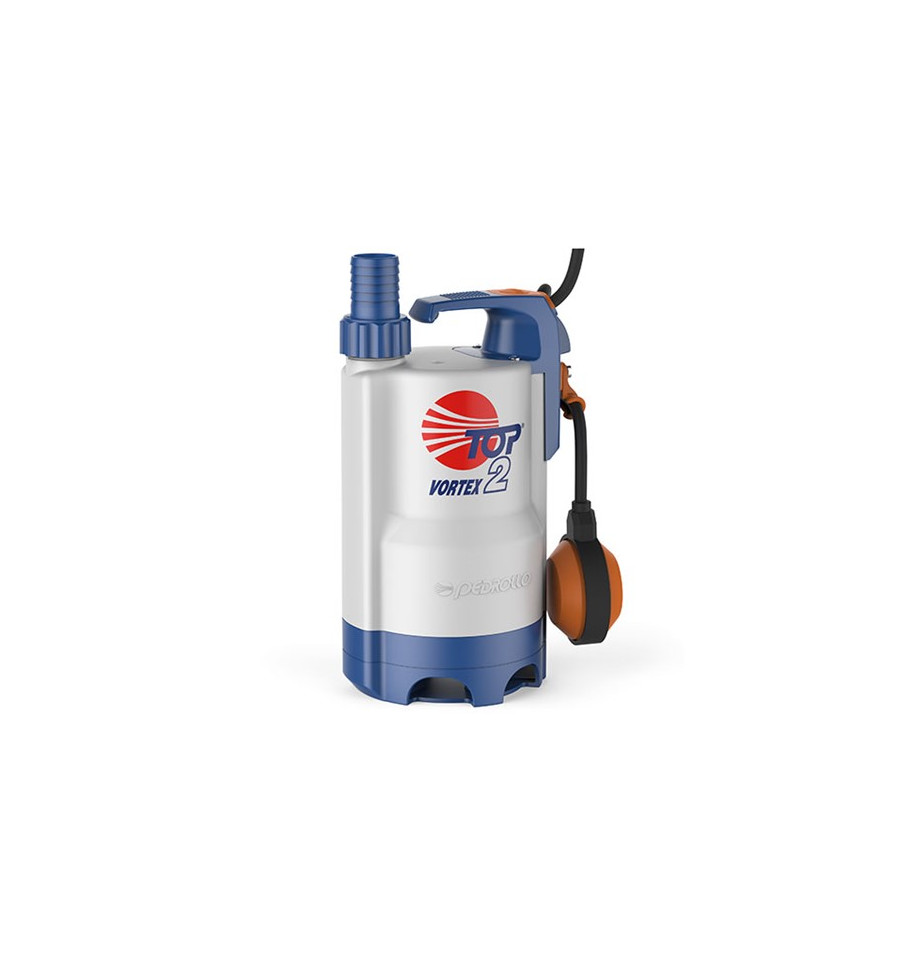

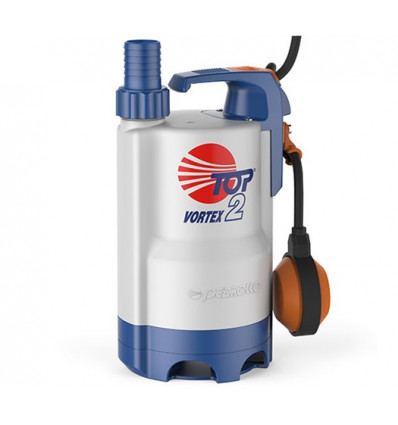

Pedrollo Submersible Vortex Pump for Dirty Water

1001897

New

• Power cable: 5 metres standard equipment

• External float switch: standard issue •

More details

€256.36

tax incl.

Liquid type: Dirty water

Uses: domestic

Applications: drainage, dirty water - slightly solid particles, emptying tanks

typology: submersible

Family: submersible pumps

Performance Range:

  • Flow rate up to 180 l/min (10,8 m³/h)
  • Head up to 8,50 m

Application Limit:

  • Temperature of the liquid to +40 °C
• 3 m maximum immersion depth
(with a sufficiently long power cable)
• Maximum liquid temperature +40 °C
(Maximum liquid temperature +90 °C for a maximum of 3 minutes
intermittent service)
• Passage of suspended solids up to Ø 25 mm
• Suction down to 25 mm
The TOP-VORTEX pump is suitable for use with dirty water that is not chemically aggressive towards the materials from which the pump is made.
As a result of the design solutions that have been adopted, such as the complete cooling of the motor and the shaft with double seal, these pumps are easy to use and reliable.
They are suitable for use in applications such as clearing dirty water, emptying tanks, discharging domestic waste water, and for emptying collection traps containing suspended solids up to a maximum of Ø 20 mm.

Submersible Pump
