Altecnic ERES Filling Loop Sealed System Kit ER-ECOKIT

• Product Description

  Altecnic ERES Filling Loop Sealed System Kit – ER-ECOKIT

  The ER-ECOKIT brings together everything needed to connect and commission an expansion vessel on a sealed heating system, in one part number. Rather than sourcing a filling loop, a safety valve, a gauge and a manifold separately and hoping the threads match, the kit arrives as a matched assembly ready to fit.

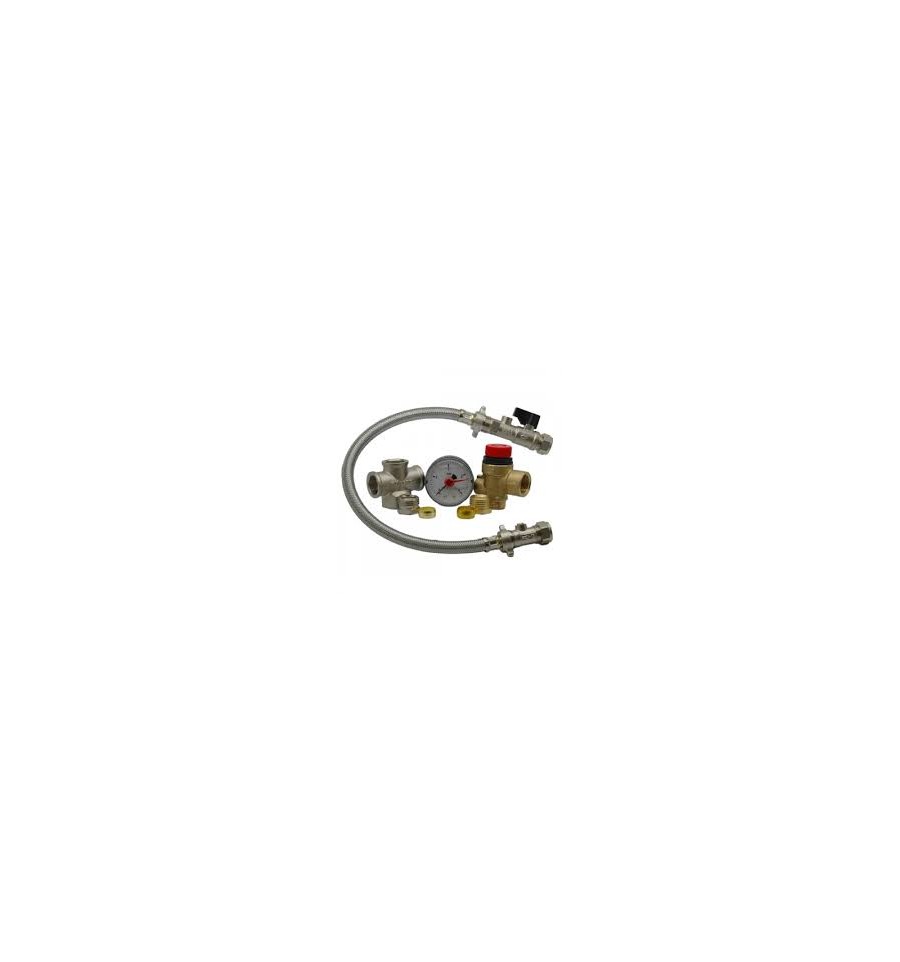

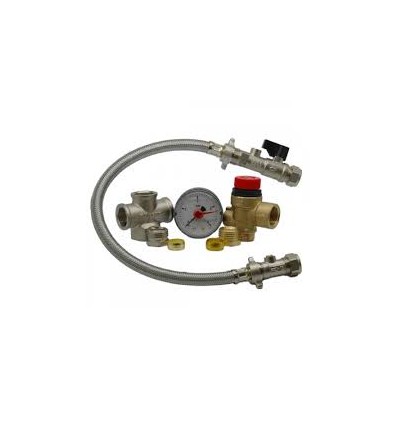

  The kit contains a filling loop with two 15mm compression fittings for connecting to the mains and system pipework, a 3 bar safety relief valve to protect against excessive pressure build-up, a pressure gauge for monitoring system pressure, and a 3/4" manifold with mounting bracket that ties the components together and carries the expansion vessel. A red or blue safety valve cap is included depending on the application.

Key Features

• Genuine Altecnic ERES kit
• Product Code: ER-ECOKIT
• Complete sealed system connection kit
• Filling loop with 2 × 15mm compression fittings
• 3 bar safety relief valve
• Pressure gauge for system monitoring
• 3/4" manifold
• Mounting bracket included
• Red or blue safety valve cap
• Suits expansion vessels from 8 to 80 litres
• Everything matched in one part number
• Suitable for domestic and light commercial systems
• Part of the Caleffi Group
• Expansion vessel sold separately

Technical Specification

Benefits

• One part number instead of four separate components
• No mismatched threads or missing fittings on site
• Covers vessel sizes from 8 to 80 litres
• Protects the system with a 3 bar relief valve
• Gauge lets the customer check pressure themselves
• Bracket supports the vessel securely
• Faster commissioning on new installs
• Genuine Altecnic quality, not an unbranded copy
