> >>Myson 3 Port Zone Diverter Valve 22mm MPE322DV

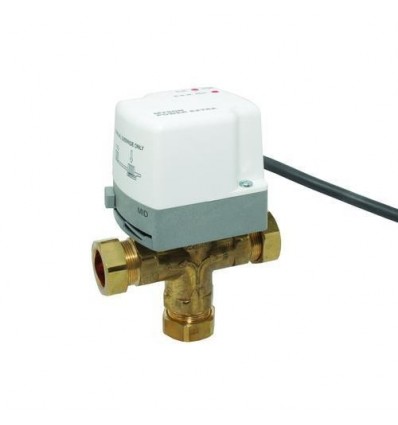

Myson 3 Port Zone Diverter Valve 22mm MPE322DV

MPE322DV

New

Myson 3 Port Zone Diverter Valve 22mm MPE322DV

More details

€160.59

tax incl.
Add to wishlist
  • Myson 3 Port Zone Diverter Valve 22mm MPE322DV
  • Designed To Control Water Circulation In Primary Hot Water & Central Heating Circuits, By Diverting Flow To Either Circuit Using A Single Valve
  • When The Manual Lever Is Moved To The Right, Ports A & B Are Open, This Is Used When Filling, Venting Or Draining The System
  • The Spring Return, Diverter Actuator–Valve Rests In The Hot Water Only Position
  • Motor Supply Voltage; 230V AC
  • Frequency; 50Hz
  • Power Consumption; 6W
  • Motor Insulation Rating; Class ‘F’
  • Maximum Working Pressure; 10 Bar
  • Maximum Water Temperature; 95°C
  • Maximum Ambient Temperature; 52°C
  • KV Value; 6.6
  • High Temperature Silicon Cable; 1000mm
  • Valve Body; Brass With Spring Loaded Mica FIlled PTFE Shoes
  • Actuator Power To Open, Spring To Close
