Joule Stainless Steel Cylinder 2 Coil 250L

Product Description

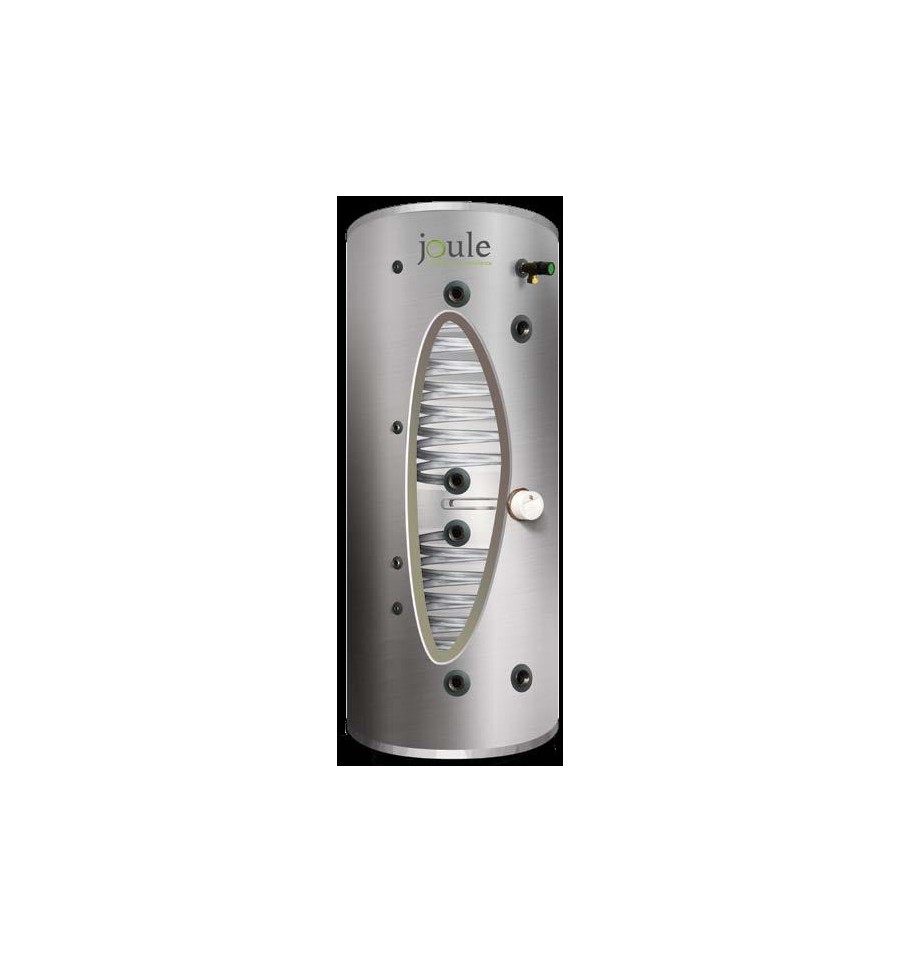

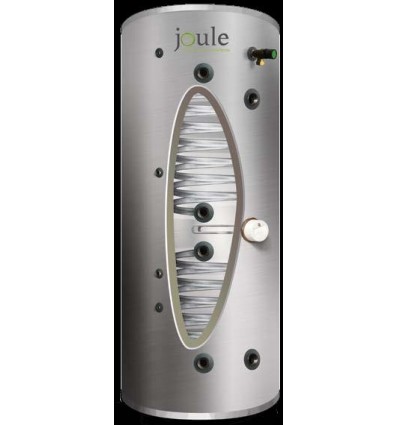

Joule Cyclone Twin Coil Cylinder TCIMVS-0250NFC – 250L Indirect Stainless Steel Cylinder

The Joule Cyclone TCIMVS-0250NFC is a 250-litre twin coil indirect hot water cylinder — the middle size in Joule's solar range, and often the sensible choice where a 200L store would run short on solar gain but a 300L would sit half-heated on dull days. It carries two 3/4" coils, giving solar thermal and a conventional boiler each their own heat exchanger.

The twin coil arrangement is designed for solar and an oil or gas boiler working together. Through summer the solar coil does the bulk of the work from free roof energy, with the boiler only topping up the shortfall — which is where the running cost saving actually comes from. The extra 50 litres over the 200L model gives more room to bank solar heat on a good day and carry it into the evening. Please note this model is not suitable for solid fuel systems.

Manufactured from high grade duplex stainless steel, fitted with branded quality components and supplied factory pre-built gas or oil boiler ready, the Cyclone range is built for straightforward installation and long service life. Inside, only the best materials are used, with 316L grade stainless fittings and coils, and the Cyclone's attractive grey finish uses no cheap plastic on the outer casing. This model is not suitable for use with well water — a dedicated well water cylinder is available for those installations.

Key Features

• Genuine Joule Cyclone cylinder
• Product Code: TCIMVS-0250NFC
• 250 Litre capacity
• Twin coil design (2 × 3/4")
• Suitable for solar thermal systems
• Gas and oil boiler ready
• High-grade duplex stainless steel construction
• 316L grade stainless steel fittings and coils
• Smooth tube high recovery coils
• Factory pre-built with branded quality components
• Metallic grey wipe-clean rigid casing
• 25-year transferable guarantee on the stainless steel vessel
• Not suitable for solid fuel or well water

Technical Specification

Benefits

• Captures free energy from solar thermal panels
• Two heat sources served by one cylinder
• Extra capacity to bank solar heat through the evening
• Lower running costs by reducing boiler demand in summer
• Excellent corrosion resistance from duplex stainless steel
• Fast recovery from smooth tube coils
• Boiler ready for a quicker installation
• Suits homes with two or three bathrooms
