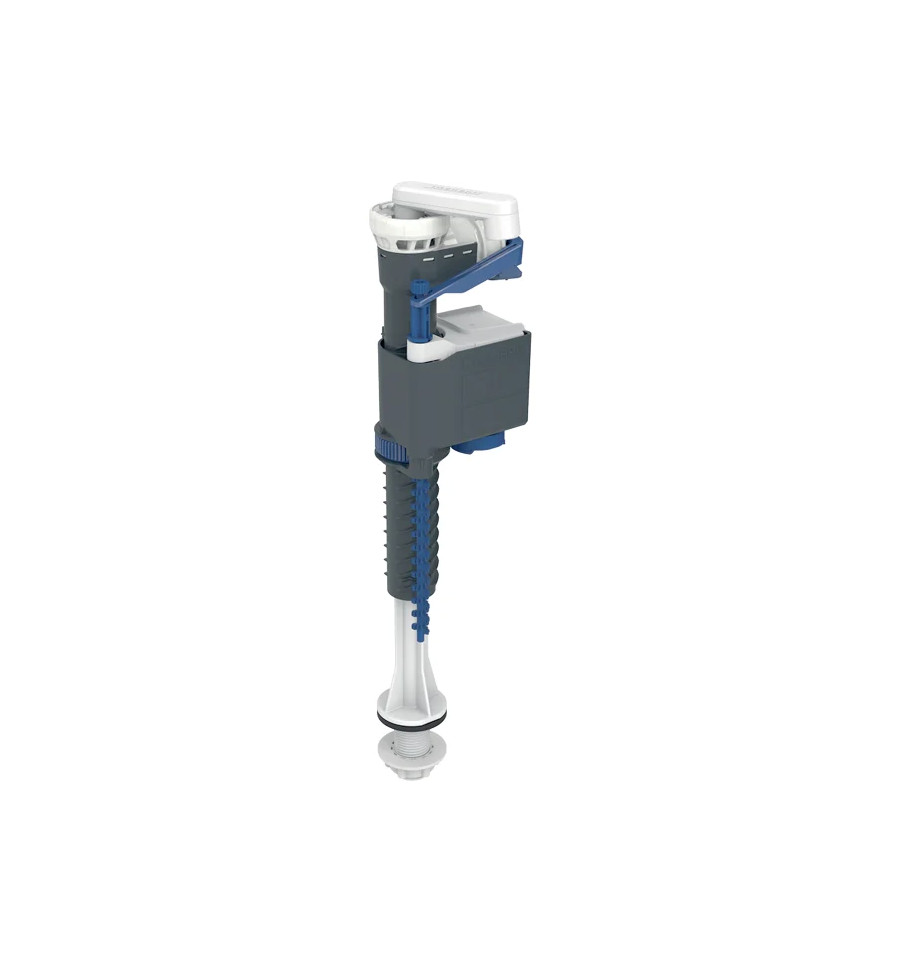

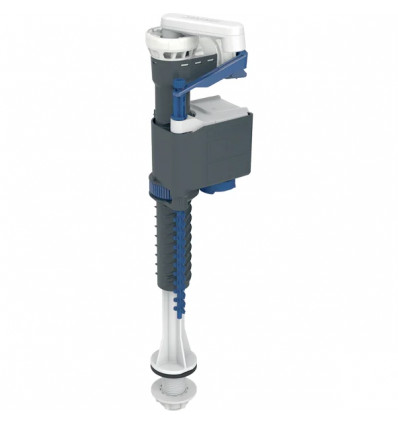

Geberit Type 323AG Fill Valve

This Geberit Type 323AG Fill Valve is designed for reliable performance, water efficiency, and ease of installation. Suitable for Geberit and ceramic cisterns, this high-quality component ensures consistent filling while helping reduce water consumption.

This fill valve fits all common close-coupled ceramic cisterns, meaning there is no need to replace older exposed cisterns just because a fill valve is defective, or water consumption no longer meets modern efficiency standards.

Geberit fill valves are suitable not only for every older Geberit cistern, but also for exposed or concealed cisterns from many other ceramic appliance manufacturers.

Supplied in retail-ready packaging for point-of-sale display and convenient customer purchase or shipping.

Key Features:

• Delay Fill Function: The cistern only begins filling once the flush valve has closed, reducing unnecessary water waste and delivering measurable savings depending on flush volume and water pressure
• Easily Activated or Deactivated: Simply remove the float and reattach with a quarter turn
• Adjustable Filling Height: Provides flexibility for different cistern designs and water levels
• Bottom Supply Connection (1/2"): Durable plastic threaded nipple for long-lasting performance
• Backflow Prevention Type AG: Ensures safety with a free outlet and overflow protection
• Certified Quality: Meets BS 1212-4:2016 and WRAS Section 2075 requirements
• Boxed POS Version: Supplied in retail-ready packaging for point-of-sale display and easy customer purchase

Technical Specifications:

• Flow Pressure: 0.1–10 bar
• Minimum Flow Pressure: 0.1 bar
• Flow Rate at 0.5 bar: 0.06 l/s
• Flow Rate at 3 bar: 0.17 l/s
• Max. Water Operating Temperature: 25°C
• Connection Size: G 1/2"
• Height Adjustable: 155–235mm
• Overall Height: 306mm

Product Code:

• 136.761.00.1 - Geberit Fill Valve Type 380AG 305mm Boxed Pack, Bottom Connection, 1/2"
