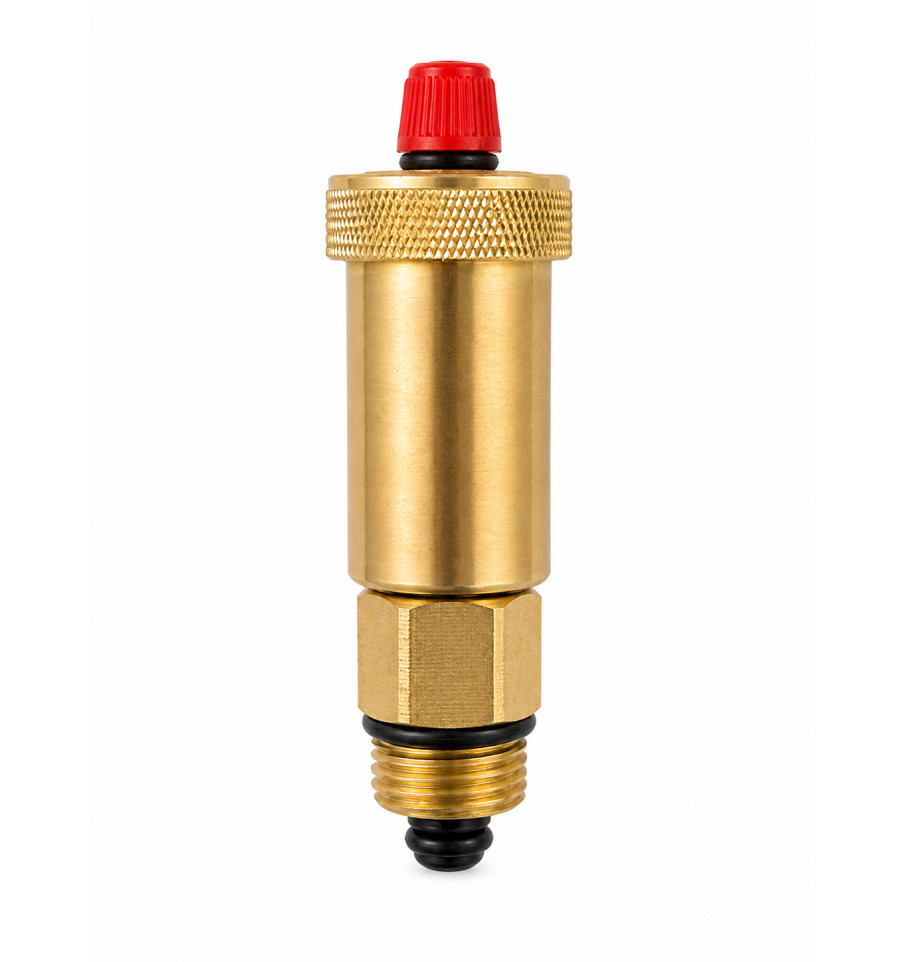

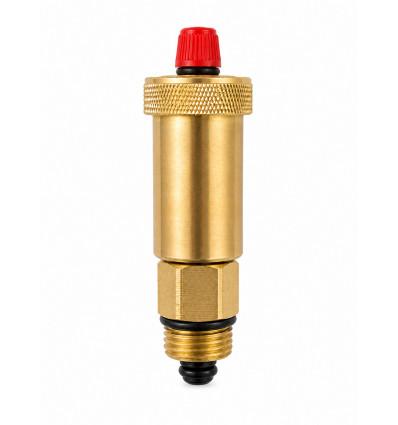

Automatic Air Vent Valve 1/2" – Brass, Float Type, 10 Bar Max (P0504)

Automatic Air Vent Valve 1/2" – Brass, Float Type

Air is the enemy of a heating system. It collects at high points, blocks circulation, causes the cold-at-the-top radiators everyone recognises, and makes pumps and boilers work harder than they need to. An automatic air vent removes it continuously without anyone touching a radiator key.

The mechanism is entirely self-acting. A float inside the brass body sits on the water level; as air accumulates the float drops, opening a small valve that lets the air escape, then rises and reseals as water refills the chamber. There's no power supply, no controls and no maintenance schedule — it simply works whenever air is present.

Key Features

• Brass automatic air vent valve
• Product Code: P0504
• 1/2" connection
• Float-operated, fully automatic
• No power supply or controls required
• Removes trapped air continuously
• Working pressure 3 bar (43.5 psi)
• Maximum pressure 10 bar (145 psi)
• Working temperature -10°C to +100°C
• ISO 228 parallel thread (DIN 259 / BS 2779 equivalent)
• Knurled brass cover for hand tightening
• Red protective cap, closable for pressure testing
• Suits heating, chilled water and closed circuit systems
• Compact vertical body

Technical Specification

Benefits

• No more bleeding radiators by hand
• Restores circulation blocked by trapped air
• Protects pumps from running against air
• Works automatically, day in day out
• Cap can be closed for pressure testing
• Parallel thread mates with standard fittings
• Brass body for long service life
• Low-cost fix for a common system problem
